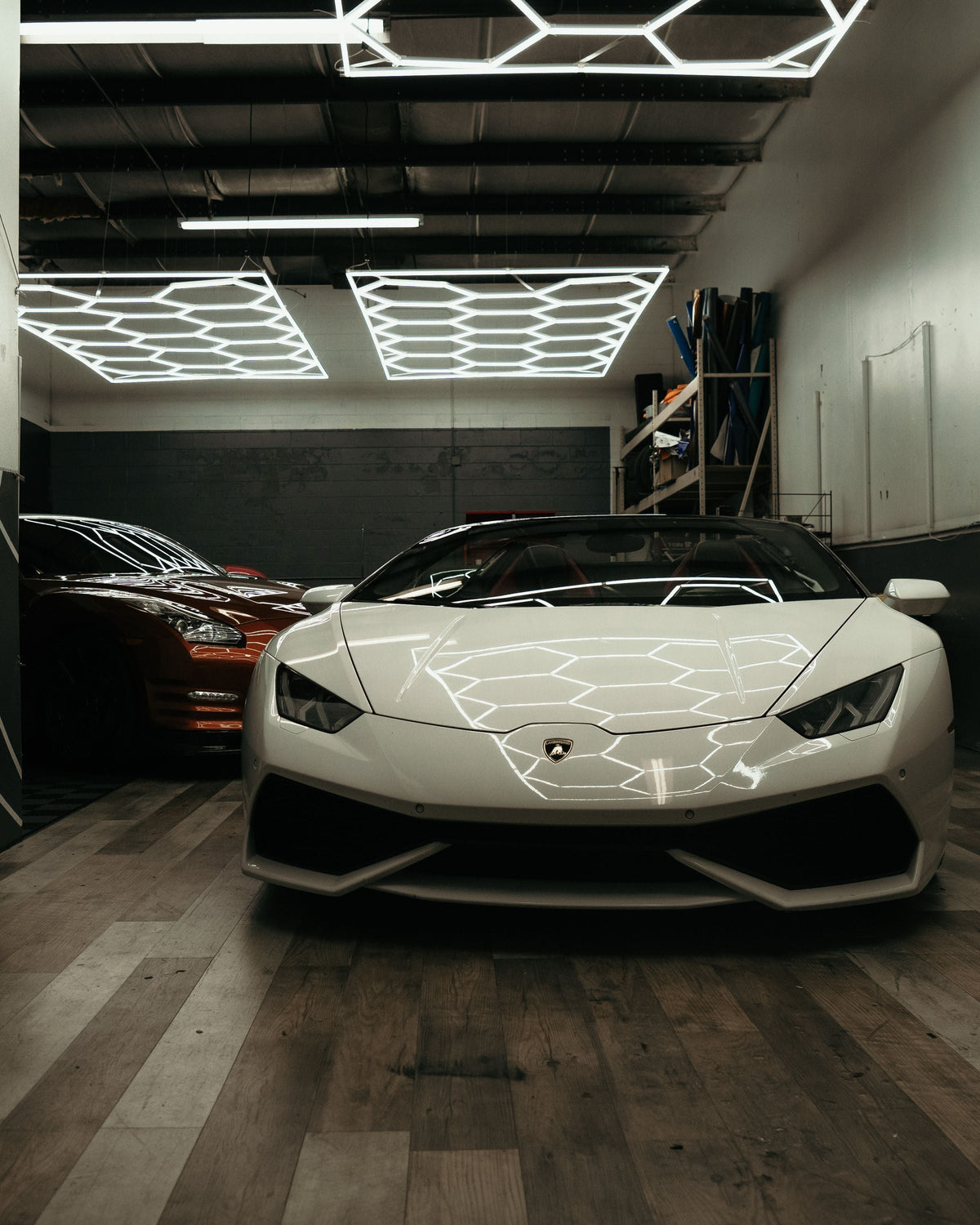

Hexagon Garage Lights: The Complete Buyer's Guide

Hexagon garage lights turn a dim box into a bright, even workspace, and they look sharp doing it. The short version: get 6500K for pure work light, tri-color if you want to dial the mood down, RGB if the garage doubles as a hangout. Size the grid to the floor you actually use, not the whole room.

This guide walks through every choice that matters before you buy: grid size, color temperature, framed versus frameless, ceiling height and how the thing gets power.

What are hexagon garage lights?

A hex grid is a set of LED tubes that snap together into a honeycomb pattern on your ceiling. Instead of a few hot spots from bulbs or shop lights, you get long runs of light spread across a wide area. That means fewer shadows under the hood, around the bench and along the sides of the car.

They became popular in detailing shops because the even light shows swirl marks and high spots in paint. Now they are the default "finished garage" look. Under the hood, though, they are just efficient LED tubes with plastic connectors. Nothing exotic.

5, 8 or 14 hex: which grid size do you need?

Grid size is the biggest decision. Hex count tells you how much ceiling the grid covers and roughly how much light it puts out. Exact dimensions vary by kit, so always check the listed footprint against your tape measure.

• 5 hex: Covers one bay, a workbench zone or a smaller one-car garage. Good starter grid.
• 8 hex: Covers a full one-car garage or the main working half of a two-car.
• 14 hex: The full two-car showpiece. Covers most of a standard two-car ceiling.

Our Two Bay Hex Grid Garage Light, 6500K comes in 5, 8 and 14 hex layouts, from $176.99. If you want a budget entry point, the 5-Grid LED Honeycomb Kit is $139.99 and is listed at 26,400 lumens.

How big a grid for a 1-car or 2-car garage?

A typical one-car garage runs about 240 square feet. A two-car is usually 400 to 480. Use these as starting points:

Garage	Typical size	Parking and storage	Workshop or detailing
1-car	~240 sq ft	5 hex	8 hex
2-car	~400-480 sq ft	8 hex, or a 5 hex per bay	14 hex
3-car	~600-700 sq ft	14 hex over the main bays	14 hex plus a second grid or extra fixtures

Rule of thumb: center the grid over where the work happens. If one bay is the car and the other is a bench and tool wall, put the grid over the car and add task light at the bench. Want the numbers behind it? Figure about 30-50 lumens per square foot for parking and 75-100 for a workshop, then compare against the listed lumens on the grid you like.

6500K vs tri-color vs RGB

6500K daylight

Crisp, cool white. This is the detailing look and the most popular choice for a working garage. It reads as bright and clean, and it shows dirt, scratches and paint defects well. The downside: it can feel clinical if you hang out in there at night.

Tri-color dimmable

Switch between warm (about 3000K), neutral (about 4000K) and cool daylight (about 6000K), and dim down. Great if the garage is a workshop by day and a man cave by night. The Tri-Color Dimmable Hex Light is $203.99.

RGB and smart RGB

Full color, scenes and app control. The Smart RGB Hex Grid ($375.99) adds app, remote and music sync. Make sure any RGB grid can still run a true white for real work. Color is fun. Working under purple light is not.

Framed vs frameless hex grids

Frameless grids are just the honeycomb. They are cheaper, lighter and easier to fit around garage door tracks and openers.

Framed grids add a rectangular border around the honeycomb. That border adds light along the edges and gives the whole thing a finished, custom-shop look. It also takes up more ceiling, so measure carefully. The Detailing Hex Grid with Border Frame is $417.99 and is built for exactly that showroom effect.

Ceiling height: what works

• 8 ft ceilings: Work fine. Expect more glare when you look up, and watch clearance for the door and opener.
• 9-10 ft: The sweet spot. Bright, even light with less glare.
• 12 ft and up: Light spreads more before it hits the floor. Lean toward a bigger grid or add task lighting at the bench.

Before you buy, raise the garage door and note where the door panels and opener rail sit. Plan the grid around them, not through them.

Plug-in vs hardwired

Most hex kits ship with a plug. Mount the grid, run the cord to a ceiling outlet (many garages have one for the opener) or a nearby wall outlet, and you are done. That is the easy DIY route.

Hardwiring onto a wall switch looks cleaner and is more convenient. It also means working inside a junction box, so have a licensed electrician do it and follow local code. Do not cut the factory plug off and splice it yourself.

Buyer's checklist

• Measure the ceiling and mark door tracks, opener rail and any attic access.
• Pick a grid size for the area you actually work in.
• Choose 6500K for work, tri-color for flexibility, RGB for the hangout.
• Decide framed or frameless based on look and available ceiling.
• Confirm you have an outlet within reach, or budget for an electrician.
• Check the listed lumens and dimensions on the product page.

Not sure how it all fits? Drop a grid into the Garage Builder and see it alongside your storage and bench layout before you commit.

FAQ

Are hexagon garage lights bright enough to work under?

Yes, when sized right. A properly sized grid gives even, shadow-light coverage that beats a couple of bulbs by a wide margin. Add task light at the bench for close work.

Can I install a hex grid myself?

Plug-in kits are a reasonable DIY job for two people with a ladder and a drill. Hardwiring should go to a licensed electrician.

Do hex lights work in a cold garage?

LEDs generally handle cold well and do not need a warm-up like old fluorescent tubes. Check the product's listed operating range for extreme climates.

Can I expand a grid later?

Some systems can be extended with extra hex pieces, but compatibility varies by brand. Buy the size you need up front if you can.
