Two-Bay Garage Layout Ideas: One Bay for the Car, One for the Shop

The best two-bay layout is simple: one bay stays a parking bay, the other becomes your shop or gym, and the line between them is clear on the floor and on the walls. Get the clearances right, share the lighting smartly and push storage to the walls. Here's how to plan it.

How big is a two-bay garage, really?

Two-car garages are commonly somewhere around 20 x 20 ft up to 24 x 24 ft, with plenty of variation. That gives each bay roughly 10 to 12 feet of width. A midsize car or truck takes most of that, so the shop or gym bay is where you get to be creative. Measure your actual walls, door openings, steps into the house and any posts before you plan anything.

Zone the garage before you buy anything

Think in zones, not furniture. A split two-bay garage usually has four:

• Parking zone: One bay, kept clear from floor to ceiling where the car and its doors go.
• Work or gym zone: The second bay, built around a workbench or a rack.
• Storage walls: The side and back walls, used vertically so the floor stays open.
• Walkway: A clear path from the house door to the car and to the big door. Plan about 3 feet.

The easiest way to test this is in our Garage Builder. Drop in your bays, your workbench, your rack and your storage and see what actually fits before you drill a hole.

Clearances that make or break the layout

Car doors

Open your driver's door to the point where you can comfortably get out. Measure it. For most vehicles, plan around 2.5 to 3 feet beside the door. That space has to stay clear of benches, tool chests and plates. Park the car closer to the outside wall and give the driver side the room.

Garage door and opener

An open sectional door sits under the ceiling for the first several feet of each bay, and the opener rail runs down the middle. That kills ceiling storage and pull-up bars up front. Put tall items, racks and overhead storage toward the back.

House door and steps

Leave the landing at the house door clear and the door swing unblocked. Nobody wants to climb over a tool chest with groceries.

Work and gym zones

A workbench needs room behind you to stand, step back and swing a board, roughly 3 feet minimum. A barbell is a little over 7 feet long, so a lifting zone needs around 10 feet of width to load plates. In a 10 to 12 ft bay, that's tight but workable if the rack faces the side wall.

Bay two as a shop

Put the workbench on the back wall or the shared side wall with storage above it. Our Garage Workbench with Pegboard, Drawer and Lower Shelf ($279.99) keeps hand tools on the pegboard right where you use them. Roll a tool chest next to it, and use the side wall for a wall track system and shelving. Keep the bench end of the bay away from where car doors swing.

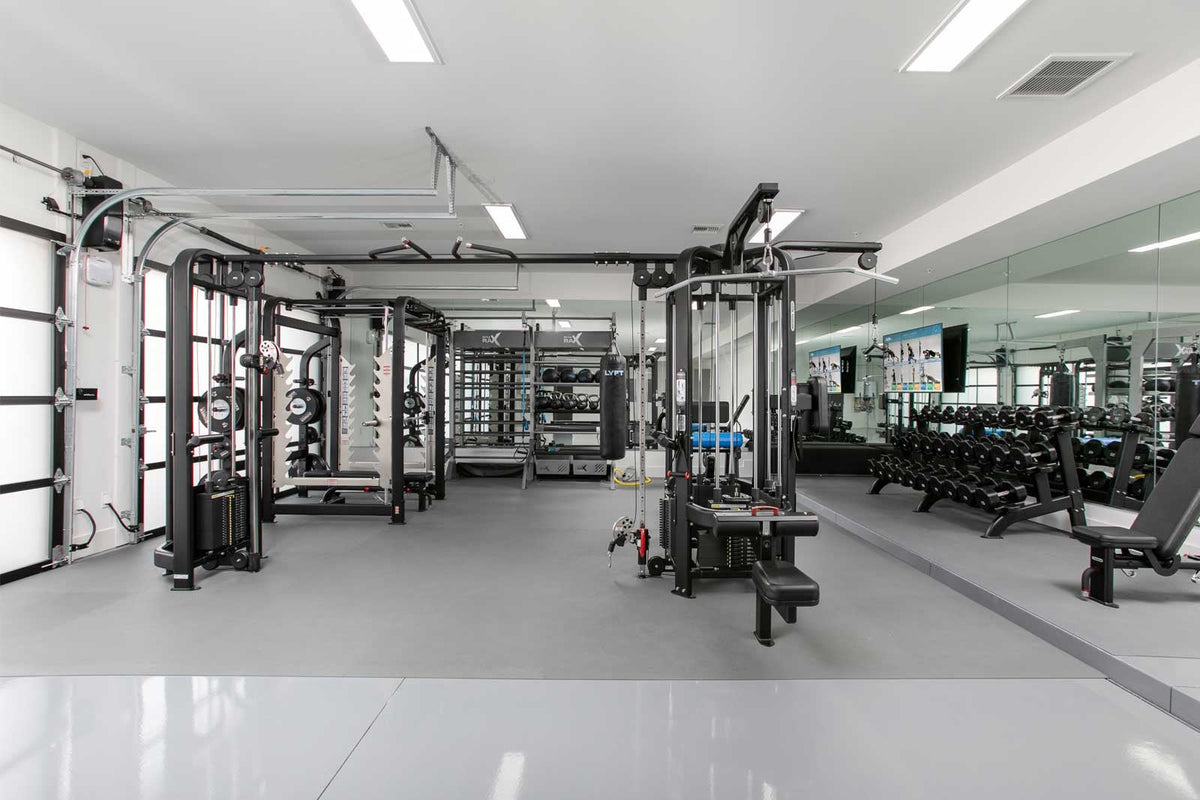

Bay two as a gym

Run the rack along the back or the side wall, under clear ceiling, out of the door's path. Lay mats first, then place the rack. Our garage gym collection has a half rack, a power tower and interlocking mats that cover 48 sq ft per pack, enough for a rack and bench footprint. Keep loose plates and dumbbells on the far side from the car so nothing rolls into a door.

Shared lighting that works for both bays

You don't need two separate lighting plans, but you do need the right light in each zone.

• Car bay: Even, bright overhead light shows the paint and the floor. A hex grid over the car is both a showpiece and a detailing light.
• Shop bay: Bright, shadow-free light over the bench. Mount fixtures slightly in front of where you stand so your head doesn't shadow the work.
• Gym bay: Bright general light, with nothing hanging low where a bar or pull-up goes.

A budget start is a Deformable LED Garage Light ($34.99) in each existing socket. For the full look, check our garage lighting collection. Safety first: new circuits, outlets and hardwired fixtures are a job for a licensed electrician, and garage receptacles generally need GFCI protection under electrical code.

Flooring transitions between bays

A split garage often ends up with two floors: a hard surface where the car parks and something softer or more specialized in the work or gym bay.

• Coated slab: A pro polyurea coating across both bays gives you one tough, easy-clean base. ArmorThane coatings are installed by certified applicators; request a quote for your garage.
• Tiles: Our Interlocking Diamond Plate Floor Tiles ($149.99 for 16 tiles at 20 x 20 in) can define a work zone without any curing time.
• Gym mats: Thicker interlocking mats go only where you lift.
• Edges: Wherever two surfaces meet, use beveled edge pieces or ramps so you don't trip and a rolling tool chest doesn't catch.

Keep mats and tiles out of the tire path unless they're rated for vehicle traffic.

Storage walls: go vertical

The floor belongs to the car and the work. Everything else goes on the walls.

• A Garage Wall Track Storage System ($59.99, 49.5 in, rated to 600 lb) holds ladders, cords, bikes and long-handled tools. Run it along the shared wall above car-door height where you can.
• Heavy-Duty 5-Tier Shelving ($119.99, rated to 2,000 lb) fits at the back of either bay for bins and bulk storage.
• Anything that mounts to the wall should go into studs or proper masonry anchors, and should never be loaded past its rated capacity.

Two-bay layout checklist

1. Measure walls, doors, ceiling and the open-door path.
2. Mark the car's footprint plus door clearance with tape on the floor.
3. Pick the work or gym bay and plan its main piece on the back or side wall.
4. Keep a clear 3 ft walkway to the house door.
5. Plan lighting per zone and call an electrician for new circuits.
6. Decide flooring per zone and plan clean transitions.
7. Move storage up onto the walls.

FAQ

Can I fit a car and a home gym in a two-car garage?

Usually, yes. Keep the car in one bay with door clearance, and run the rack and mats along the back or side wall of the other bay.

Where should a workbench go in a split garage?

On the back wall or the wall away from the car, out of the door-swing zone, with good light in front of you.

Should both bays have the same flooring?

Not necessarily. A coated slab everywhere with mats or tiles in the work zone is common. Just plan smooth transitions.
